Domestic Gas Meter

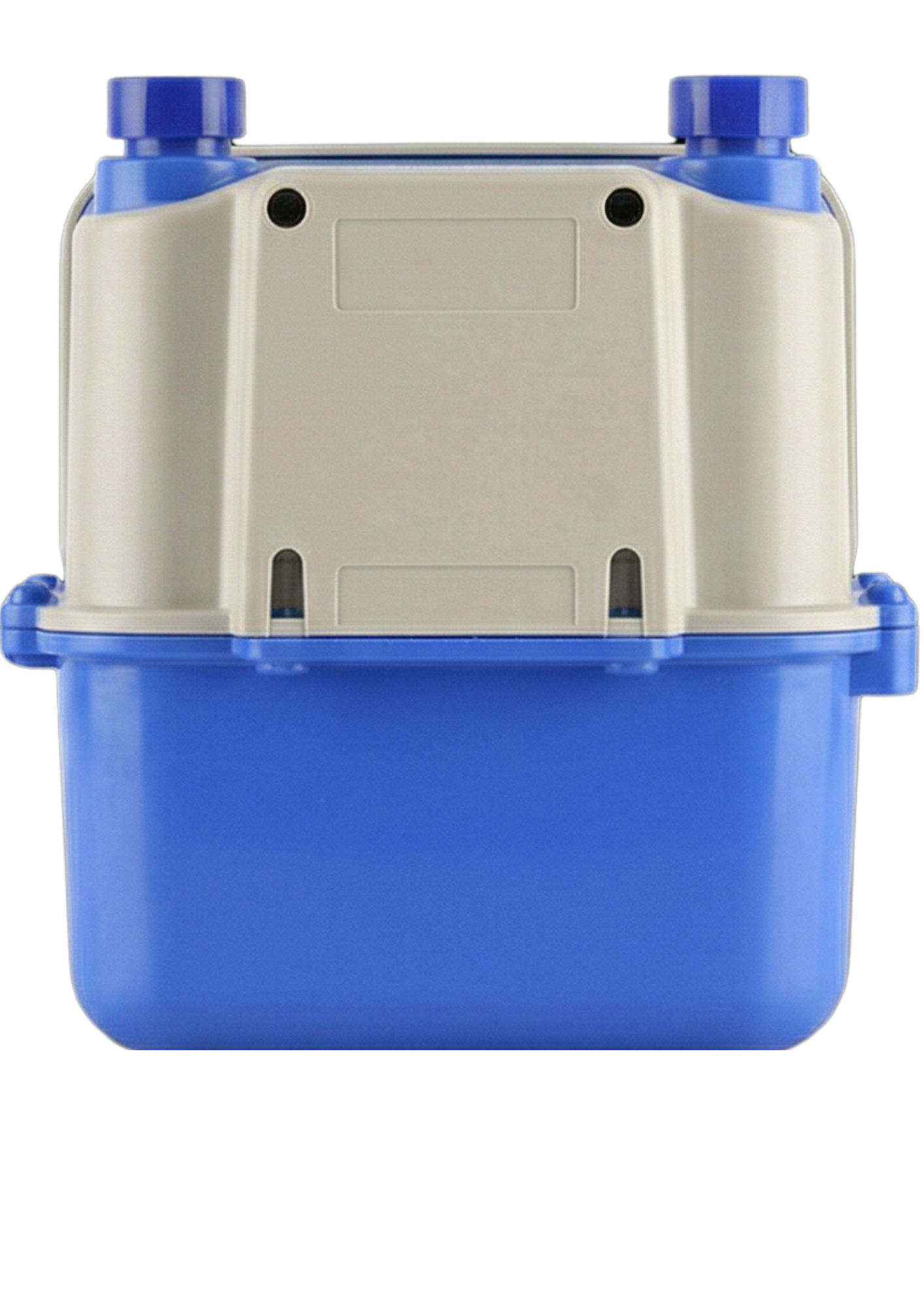

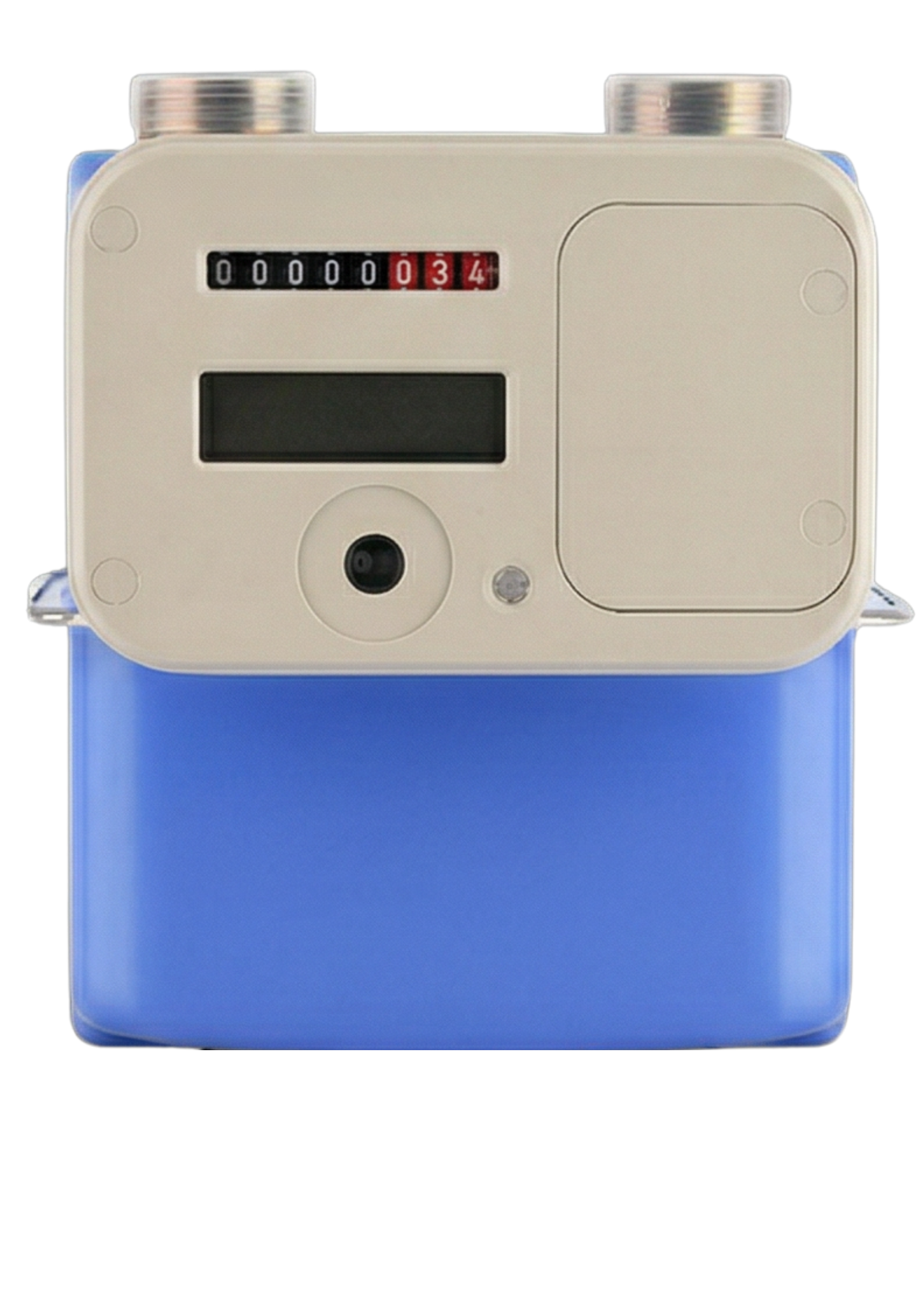

G1.6 Diaphragm Gas Meter Series
Compact and reliable diaphragm gas meters designed for accurate residential gas measurement, ensuring long-term stability and safe operation.
| Model | Type | Protection Rating |
|---|---|---|
| G1.6S | Smart Meter | IP57 |
| G1.6MS | Mechanical Meter | IP65 |
Key Features
- High-precision diaphragm technology
- Durable, corrosion-resistant construction
- Stable performance with long lifecycle
- Leak-proof & safety compliant
- Suitable for Natural Gas, LPG & Biogas
Smart Metering
- Mechanical AMR Compatible
- AMR & EVC Inbuilt option
- Supports Prepaid & Postpaid systems
Build & Design
- High-quality steel body construction
- Compact & robust installation design
- Long-term measurement stability
Applications
Residential gas distribution & utility metering.
Compliance
- EN1359 Standard
- MID Certified
- OIML R137 Compliant
Technical Specifications – G1.6
| Parameter | Smart Meter | Mechanical Meter |
|---|---|---|
| Qn | 1.6 m³/h | 1.6 m³/h |
| Qmax | 2.5 m³/h | 2.5 m³/h |
| Qmin | 0.016 m³/h | 0.016 m³/h |
| Pressure | 0.5 bar | 0.5 bar |
| Accuracy | Class 1.5 | Class 1.5 |
| Pressure Loss | ≤ 2 mbar | ≤ 2 mbar |
| Cyclic Volume | 1.2 dm³ | 0.8 dm³ |
| Weight | ~1.8–2.0 kg | ~1.55 kg |
Installation & Design Advantage
- Compact footprint for easy installation
- Flexible connection options
- Maintenance-friendly structure
- Lightweight design (especially G1.6MS)
Compliance & Certifications
- EN1359 Standard
- MID (2014/32/EU) Certified
- OIML R137 Compliant
Engineered for precision, built for reliability, and ready for smart gas metering systems.
CNG CASCADE FEATURES
Precision engineered.
Safety without compromise.
The CNG Storage Cascade System is a high-pressure gas storage solution designed to safely supply gas at required operating pressures. The system consists of a group of CNG cylinders interconnected with SS 316 stainless steel tubing, mounted on a strong iron structure.
Designed and manufactured in compliance with the latest PESO norms, the cascade uses Cr-Mo steel cylinders approved by the Chief Controller of Explosives. All tubing, valves, and fittings are made from SS 316 stainless steel to ensure long service life.
Cascade Configuration Details
| S.No. | Type (CNG/CBG) | Water Capacity (L) | Weight (Tons) | Cylinders | Capacity | Banks | Distribution |
|---|---|---|---|---|---|---|---|
| 01 | Stationary | 3000 | 6.2 | 40 | 75 L | Three/One | 20:12:8 (L:M:H) |
| 02 | Stationary | 4500 | 9.3 | 60 | 75 L | Three/One | 30:18:12 (L:M:H) |
| 03 | Mobile | 3000 | 6.2 | 40 | 75 L | Three/One | 20:12:8 (L:M:H) |
| 04 | Mobile | 4500 | 9.3 | 60 | 75 L | Three/One | 30:18:12 (L:M:H) |
Standard specifications subject to modification per customer requirements.
